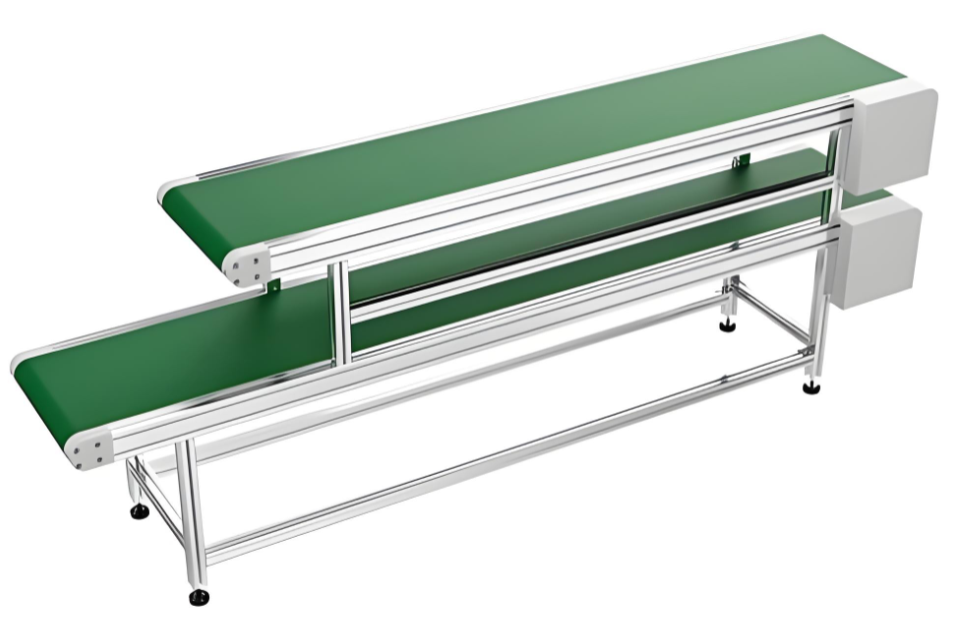

Calculation of the geared motor for a horizontal belt conveyor line

Calculation Principle

This calculator is based on physical mechanics principles. By analyzing the force and motion conditions of the conveyor belt system, it calculates the required torque and power for the driving drum, thereby determining the motor power and gear ratio.

Main Calculation Steps:

1. Calculate total load weight: Belt system weight + Product load weight
2. Calculate total friction force: Total load weight × Gravity × Friction coefficient
3. Calculate drum linear velocity: Running speed (m/min) ÷ 60
4. Calculate drum angular velocity: Linear velocity ÷ Drum radius
5. Calculate drum torque: Friction force × Drum radius
6. Calculate theoretical power: Torque × Angular velocity ÷ 1000
7. Calculate power with safety factor: Theoretical power × Safety factor
8. Calculate drum speed: Linear velocity × 60 ÷ (π × Drum diameter)
9. Calculate gear ratio: Motor input speed ÷ Drum speed

Parameter Explanation

• Main Drum Diameter: Diameter of the driving drum, in millimeters (mm)
• Running Speed: Conveying speed of the belt, in meters per minute (m/min)
• Belt System Weight: Weight of the belt and related components, in kilograms (kg)
• Product Load Weight: Total weight of the conveyed products, in kilograms (kg)
• Friction Coefficient: Friction coefficient between belt and pallet, belt and drum, typically 0.02-0.3
• Motor Input Speed: Rated speed of the motor, in revolutions per minute (rpm)
• Safety Factor: Safety margin considering various uncertainties (such as starting impact, voltage fluctuations), typically 1.5-3.0

Usage Tips

1. Ensure correct units when entering parameters

2. The selection of friction coefficient should be reasonably determined according to actual conditions

3. The selection of safety factor should consider the importance of the equipment and the operating environment

4. Calculation results are for reference only, and adjustments should be made based on specific conditions in practical applications
