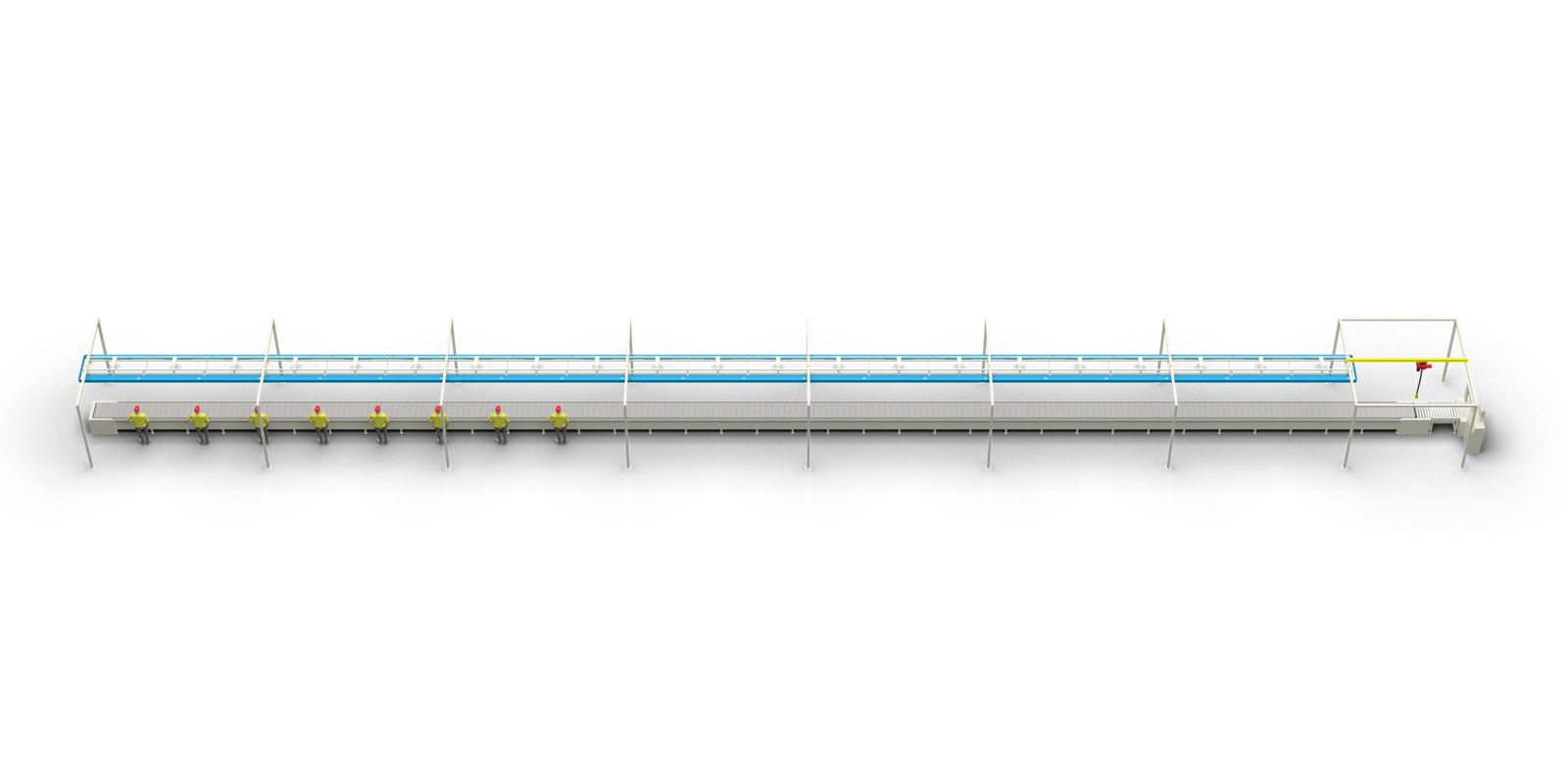

Portable Gasoline Generator Assembly Line

I. Structure of Portable Gasoline Generators

Portable gasoline generators consist of two core systems: the engine system and the power generation system, featuring a compact structure, small size, and easy portability.

1. Engine System (Power Unit)

The engine converts the chemical energy of gasoline into mechanical energy, primarily using single-cylinder four-stroke gasoline engines:

Subsystem	Main Components	Function Description
Energy Conversion System	Cylinder head, piston, piston rings, connecting rod, crankshaft	Completes combustion expansion, drives piston movement, and outputs rotational power
Valve Train	Intake valve, exhaust valve, camshaft	Controls intake and exhaust processes
Fuel Supply System	Fuel tank, carburetor/EFI system, fuel pump, fuel lines	Atomizes gasoline and mixes with air for delivery to the cylinder
Ignition System	Ignition coil, spark plug, flywheel magnet	Generates high-voltage spark to ignite mixture at end of compression stroke
Cooling System	Cooling fins, fan (air-cooled)	Portable units typically use air cooling through airflow
Lubrication System	Oil pump, oil passages	Reduces wear on moving parts
Starting System	Recoil starter or electric starter	Initiates engine operation

2. Power Generation System (Electrical Output Unit)

The generator converts mechanical energy into electrical energy through electromagnetic induction:

Component	Structural Composition	Function
Stator	Stator core, winding coils, frame	Stationary part that generates induced electromotive force
Rotor	Rotor core (magnetic poles), excitation winding, shaft	Rotating part that establishes main magnetic field
End Covers	Front and rear end covers	Secures and protects stator and rotor, supports bearings
Bearings	Ball bearings	Supports smooth rotor rotation
Excitation System	Automatic Voltage Regulator (AVR)	Provides DC excitation current to stabilize output voltage
Control System	Control panel, circuit breaker, meters	Monitors voltage, frequency, and operating status

3. Auxiliary Structures

• Frame/Chassis: Supports the entire unit; portable models use lightweight aluminum alloy or steel tube structures
• Muffler: Reduces exhaust noise
• Fuel Tank: Integrated into the frame, capacity designed according to power rating
• Control Panel: Integrates output sockets, voltmeter, circuit breaker, etc.

II. Assembly Process

The assembly process for portable gasoline generators is divided into four stages: component preparation, core component assembly, final assembly, and testing & debugging.

1. Component Preparation Stage

Process	Content
Rotor Processing	Precision machining of rotor core, dynamic balance testing to ensure balance
Core Manufacturing	Lamination of silicon steel sheets to manufacture stator and rotor cores
Winding Manufacturing	Copper wire winding of stator windings and rotor excitation windings, embedding into core slots
Machined Parts	Precision machining of aluminum alloy components such as crankcase, cylinder head, and covers

2. Core Component Assembly

Engine Assembly:

• Assembly of crankshaft, connecting rod, and piston components
• Cylinder head mating with crankcase, installation of valve mechanism
• Installation of flywheel magnet and ignition system
• Installation of carburetor and muffler

Generator Assembly:

• Securing stator windings to frame
• Assembly of rotor with bearings and end covers
• Coaxial installation of stator and rotor to ensure uniform air gap

3. Final Assembly Process

Assembly Flow:
Engine assembly → Installation of generator rotor (coaxial connection) → Installation of frame/chassis → Installation of control panel → Installation of fuel tank and fuel lines → Installation of muffler → Electrical connections (excitation wires, ignition wires, output wires) → Visual inspection

Key Control Points:

• Coaxiality Control: Engine crankshaft and generator rotor must be installed coaxially to ensure smooth operation
• Torque Monitoring: Critical bolts use automatic tightening equipment with real-time torque monitoring
• Electrical Inspection: Inspection of winding insulation and terminal connection reliability

4. Testing and Debugging

Test Item	Content
Start Test	Start engine to check ignition and operation
Electrical Performance Test	Output voltage, frequency, and waveform detection
Load Test	Operation under load to check voltage stability
Safety Test	Overload protection, short-circuit protection, insulation test
Rework Process	Non-conforming products disassembled for rework or scrapped if irreparable

III. Assembly and Packaging Production Line

Modern portable gasoline generator production adopts automated/semi-automated production lines, with typical capacity reaching 800 units/day.

1. Production Line Layout Structure

Workshops are divided into the following zones based on large manufacturing base designs:

Zone	Function	Equipment Configuration
Machining Zone	Processing of crankcase, cylinder head, crankshaft, and other parts	Machining centers, modular machine tools, washing machines, CMM
Assembly Zone	Engine assembly, generator assembly, final assembly	4 assembly production lines, 4 end-product assembly lines
Testing Zone	Performance testing and debugging	Test benches, load equipment
Packaging Zone	Surface treatment and packaging	Painting line, packaging line
Auxiliary Zone	Testing laboratory, warehousing	Parts warehouse, finished goods warehouse

2. Main Production Line Types

(1) Assembly Line

• Automated or semi-automated assembly
• Equipped with automatic tightening equipment with real-time torque monitoring
• Inter-station transport using conveyor belts or pallet systems
• Error-proofing devices at critical stations

(2) Testing Line

• Continuous testing station layout
• Test items: electrical performance (voltage, frequency), load capacity, safety performance
• Data acquisition system records test data for each unit
• Automatic diversion of non-conforming products to rework area

(3) Surface Treatment and Painting Line

• Surface treatment for exposed parts such as frames and fuel tanks
• Improves rust resistance and appearance quality

(4) Packaging Line

Packaging Flow:
Qualified products enter → Final visual inspection → Accessories matching (manual, tool kit, engine oil, etc.) → Shockproof packaging (foam, carton) → Sealing and strapping → Labeling (model, serial number, barcode) → Stacking and warehousing → Ready for shipment

3. Information Management System

Modern production lines are equipped with MES (Manufacturing Execution System):

• Real-time monitoring of production progress and equipment status
• Quality data traceability (serial number binding with test data for each unit)
• Production planning optimization and material scheduling
• Preventive maintenance management for equipment

4. Quality Control Points

Control Link	Measures
Incoming Parts	Sampling inspection of critical dimensions, material verification
Process Control	100% inspection at critical processes, torque monitoring
Final Inspection	100% start test, electrical performance test
Traceability Management	Serial number management, enabling traceability of defective products to component batches

IV. Characteristics of Portable Generators

Compared to large diesel generator sets, portable gasoline generators have the following characteristics:

1. Small Size and Light Weight: Use of lightweight materials such as aluminum alloy for easy manual handling
2. Compact Structure: Integrated design of engine and generator with direct coaxial connection
3. Air-Cooled Dominant: No water cooling system required, simplifying structure
4. Recoil Start: Generally equipped with recoil starter, some models with electric start
5. Power Range: Typically 0.5kW to 10kW, suitable for home backup and small-scale operations

This structural design makes them widely applicable for home emergency power, outdoor operations, construction sites, camping, and other scenarios.
